CNC Control Panel and Machine Simulator for 2 /2.5 /3 /4 /5 (A & C Axis for 4th and 5th Axis)

The Complete Digital Workshop

SSCNC 2 to 3 Axis CNC Simulator:

SSCNC provides simulation with controller such as FANUC, Siemens (SINUMERIK), Mitsubishi (MITSUBISHI), HEIDENHAIN, Fagor, HAAS, ROMI, GSK (Guangzhou), HNC (HUAZHONG), KND (Beijing), DASEN (Dalian), RENHE (Jiangsu), WA (Nanjing), SKY2003N (Nanjing), PA8000, Deckel FP4, GREAT (Chengdou.), Mazak lathe and other milling centers.



It combines both machining experiences of machine company and training experiences of colleges. By using this software, students simulate the operation in real NC machines and can master the training in a shorter time interval, and colleges can reduce greatly in the investment of expensive equipments.

SSCNC is easy to use for both students and teacher. It can be either programed by hand or imported with CAM NC program and then start simulation in SSCNC. Teacher gets students' operation information through SSCNC Server in real time.

​

ScanSoft CNC Simulation includes at least 25 CNC brands, 119 CNC controllers, and 273 operational panels. It has programming and processing function for FANUC, SIEMENS (SINUMERIK), MITSUBISHI, FAGOR, HAAS, PA, Romi, GSK, HNC, KND, DASEN, WA, GREAT, SANYING, RENHE, SKY, JNC, Deckel, GTC2E, NCT, Mazak. By using the software in PC, students can master the operation of all kinds of NC lathe, NC milling and machining center in short time. Teachers receive real-time operation information from students at any time through network. This software is also the first and the only domestic NC simulation software which can be updated automatically online for free.



SSCNC MAIN FUNCTION AND FEATURES

  • 3D Modeling based OPENGL, Dual Monitor Display.

  • Dynamic rotation, zoom, move, full screen, switch views, etc.

  • G Code parse. Support ISO-1056 prepare function code (G code), assistant function code (M code) and other instruction.

  • 2/3 Axis Milling Simulation.

  • G code debug Tool.

  • Custom code and cycles in different NC system are supported in SSCNC.

  • Simulate post process file produced by UG, Pro-E, MasterCAM in SSCNC.

  • Windows MACRO recording and replay.

  • Operation process (AVI) recording and replay.

  • Workpiece setting and mounting.

  • Automatically change tool machine, Four Position Turret, Eight Position Turret and Twelve Position Turret.

  • Vertical and horizontal change tool system automatically switch.

  • Tool preset by using benchmark method and manual method.

  • Machining with coolant, sound and iron fragment effect.

  • Measure tools: edge finder, feeler gauge, micrometer, calipers etc.

  • Management tool and performance parameters adopt database technology.

  • Embedded all kind of tools in SSCNC. Supporting customize tool.

  • Three-dimensional size measure of workpiece after it is machined.

  • Roughness measure-based tool cutting parameters.

  • Automatic update online.

  • Import workpiece from CAD file.

      ... and more. â€‹â€‹

List of Controllers available:

FANUC: FANUC0iM, FANUC0iT, FANUC0MD, FANUC0TD, FANUC18iM, FANUC18iT, FANUC18M, FANUC18T, FANUC21iT, FANUC21iM, FANUC0iMF, FANUC0iTF, FANUC0iMFPlus, FANUC0iTFPlus
SINUMERIK: SINUMERIK802SeM, SINUMERIK802SeT, SINUMERIK802S/C M, SINUMERIK802S/C T, SINUMERIK802DM, SINUMERIK802DT, SINUMERIK810D/840DM, SINUMERIK810D/840DT, SINUMERIK801, SINUMERIK828D M, SINUMERIK828D T, SINUMERIK808D M, SINUMERIK808D T, SINUMERIK840D M, SINUMERIK840D SL
MITSUBISHI: EZMotion-NC60 M, EZMotion-NC60 T, EZMotion-NC68 M, EZMotion-NC68 T, MITSUBISHI M70M, MITSUBISHI M70T, MITSUBISHI E70M, MITSUBISHI E70T, MITSUBISHI M80M
HNC: HNC21-M, HNC21-T, HNC-22M, HNC-22T, HNC210A-T, HNC-210BM, HNC-808M, HNC-808T, HNC-818M,     HNC-818T, HNC-808DT
FAGOR: FAGOR 8055M, FAGOR 8055T
PA: PA8000 M, PA8000 T,

DASEN: DASEN3iM, DASEN3iT
JNC: JNC30M, JNC30T,

ROMI: Romi Mach9 M, Romi mach9 T,

GREAT: GREAT150i M, GREAT150i T

GTC: GTC2E, GTX3E,

RENHE: RENHE32T,

SKYCNC: SKY2003N
HAAS: HAAS VF, HAAS VM, HAAS ST
DECKEL: Deckel PF4,

NCT: NCT104M, NCT104 T
MAZAK: Mazak VCN 410A-II, Mazak QTN 100-II,

HEIDENHAIN: Heidenhain iTNC530
MORI SEIKI: MORI SEIKI MSX-501III, MORI SEIKI MSX-850III,

ADTECH: ADT-CNC 4620, ADT-CNC 4640

​

SSCNC SERVER MAIN FUNCTION
1. Users management
Teachers register their username and password through SSCNC server, student may login into the network version of SSCNC in any PC using local area network, Teacher can centralize the management and monitor students over local area network.

2. Exercises management
Teacher may add and edit exercises in SSCNC server. Teacher can transmit the exercises with pictures included to clients (students). Then students write the answers and transmit back to the teacher. SSCNC server builds up an easier and more convenient way for teacher and students to communicate with each other.

3. Network Monitor
SSCNC server records students' operation information according to their registration information. It can control and inquire students' login and logoff and machining operation information.

4. Examination subsystem
This system Includes question bank management, test paper management, the test process management as well as the automatic examination marking process.

5. Administer subsystem
This Includes test data management, exam permit management, and test result management.

SSMAM (Multi-Axis Machining) 4 and 5 Axis CNC Simulator

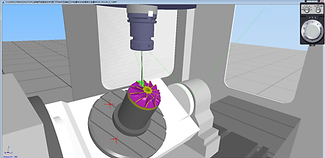

​SSMAM can realize the 5-axis simultaneous machining and multi-directional plane positioning machining simulation of the 5-axis machining center, it can Provide dual-table rotary machine structure and dual-swing head machine structure, as well as hybrid single-swing head and single-table machine structure models and provide important machine parameters of each machine model structure. It can realize the simulation of various four-axis and five-axis machining centers such as A-axis, AC-axis and BC-axis.

​

SSMAM provides a 3D display of the tool path, display of the current coordinate system, display of tool number, function of tool path debugging, function of tool compensation, setting of system parameters such as coordinate system setting, and it has RTCP function.

​

List of Controllers available:

FANUC: FANUC0iM, FANUC0iMF, FANUC0iMFPlus, FANUC18M, FANUC18iM, FANUC21iM
SINUMERIK: SINUMERIK828D M, SINUMERIK840D M
Guangzhou GSK: GSK25iM
MITSUBISHI: MITSUBISHI M70M
HNC: HNC-210BM, HNC-818M, HNC-848B
FAGOR: FAGOR 8055M
HAAS: HAAS VM
HEIDENHAIN: Heidenhain iTNC530

​

SSMAM MAIN FUNCTION

  • Blank definition, fixture calibration, workpiece clamping, workpiece zero setting, tool installation, after the tool collides, you can see the broken tool, manual operation on different panels of the same machine system, etc.

  • Simulation of machining process: including editing, automatic operation, and manual data input (MDI) mode of NC machining programs, real-time cutting of 3D workpieces, display of tool path, provision of tool compensation, coordinate system settings, etc.

  • Machine structure type: providing 4-axis with A-axis rotation structure, 5-axis AC dual-table rotary cradle structure, 5-axis BC dual-table rotary structure, 5-axis BC single-swing head single-table structure, 5-axis BC double-swing head structure.

  • Processing characteristics: with multi-axis simultaneous machining and multi-directional plane positioning machining, curved surface machining, inclined surface machining functions, can also realize one-time clamping, multiple surface machining, several times clamping and turning surface machining.

  • Set workpiece zero-point tools: such as edge-finder, reference mandrel, Z axis gauge, electronic probe, etc.

  • Program editing: NC programs generated by various CAM software can be imported through DNC, or NC programs can be manually edited through the panel.

  • Program function:

  • SIEMENS supports ISO, variable programming, inclined surface machining, tool compensation, drilling cycle, face milling pin cycle, cavity machining cycle.

  • MITSUBISHI Supports ISO programming, support canned cycle programming.

  • FANUC supports ISO programming, macro instruction programming, canned cycle programming.

  • HEIDENHAIN supports ISO programming as well as conversational programming and canned cycles.

  • Blank type: hexahedron, cylinder, support CAD model import of any shape.

  • Fixture types: flat pliers, craft plate, pressure plate, three-jaw chuck, special fixture, etc.

  • Tool library: its type contains drill, flat, ball, bull, chamfer mill, etc. Users can customize the size of the cutter.

  • Measurement: providing a variety of general measurement tools, can measure the processed 3D model, can measure the typical geometrical dimensions of various inclined surfaces of the workpiece. The measurement accuracy reaches 0.001mm.

  • Multi-axis model conversion: 5-axis machine can be imported into 4-axis machine parts.

  • International version: Support multi-language.

  • Extended functions: support interpolation process simulation, dual screen display, touch screen gesture operation.
